How Shelby Modifies the Ford F-150: Supercharger, Suspension, and More
Imagine walking through a factory where ordinary Ford trucks roll in one door and legendary American muscle machines roll out the other—that’s exactly what happens at Shelby American’s Las Vegas facility.
TLDR
Shelby American transforms stock Ford F-150 trucks into high-performance Super Snake pickups at their Las Vegas manufacturing facility through a comprehensive three-week process. Each truck undergoes complete disassembly before technicians hand-install a Whipple twin-screw supercharger system, upgraded cooling components, lowered FOX suspension, Brembo performance brakes, custom bodywork, and premium interior appointments. The supercharger installation alone involves removing the factory intake, installing dual intercoolers, upgrading fuel injectors, and reprogramming the engine computer. Every modification is performed by trained Shelby technicians who treat each truck as a numbered, serialized build. The result is a 785-horsepower beast that maintains 50-state emissions legality while delivering supercar performance in a practical truck package.
Key Takeaways
- Shelby’s Las Vegas facility handles all Super Snake F-150 conversions on a specialized assembly line
- The complete transformation takes approximately three weeks from start to finish
- Stock F-150s with the 5.0L V8 are sourced from dealers and shipped to Shelby’s factory
- The Whipple Gen 6 supercharger is hand-installed using an inverted valley design
- Dual-pass intercoolers provide industry-leading thermal efficiency for consistent power
- FOX coilover suspension lowers the truck 2-3 inches while improving handling
- Each truck receives a unique CSM number linking it to the official Shelby registry
- Custom ECU programming adjusts fuel delivery, spark timing, and transmission behavior
Inside Shelby American’s Las Vegas Factory
Where does an ordinary F-150 become a legend?
The transformation happens at Shelby American’s 125,000-square-foot headquarters located just off Interstate 15 near the Las Vegas Strip. This isn’t your typical automotive assembly plant—it’s a specialized modification facility where performance dreams become reality. Stock Ford Mustangs and pickup trucks arrive at the facility where they’re disassembled, then built from the ground up with modified Shelby parts, including wheels, interiors, engines, and paint.
All vehicles on the assembly line are pre-ordered, typically taking about three weeks from start to finish. This controlled production environment ensures quality control and attention to detail that mass production can’t match. Visitors can actually watch the process through factory tours that Shelby offers free to the public, providing a behind-the-scenes look at American automotive craftsmanship.
The facility houses multiple specialized areas—the main assembly floor where trucks are built, research and development departments testing new components, a parts warehouse stocking performance upgrades, and the Shelby Heritage Center museum showcasing the company’s legendary history. It’s essentially a complete automotive ecosystem under one roof.
The Donor Vehicle Selection Process
The journey begins when authorized Shelby dealers source appropriate donor vehicles. Not every F-150 qualifies for Super Snake conversion. Shelby requires specific configurations: the F-150 must have the 5.0-liter Coyote V8 engine, which provides the foundation for supercharging. Most conversions use Lariat trim levels with four-wheel drive and the SuperCrew cab, though Sport variants use the single-cab configuration.
The base truck should be in excellent mechanical condition with minimal miles. High-mileage trucks over 100,000 miles aren’t recommended for conversion due to wear on engine components. Shelby technicians verify the engine runs smoothly with no warning lights before beginning modifications. Once approved, the truck is transported to Las Vegas where the real work begins.
“Every Shelby Super Snake starts life as a regular Ford F-150, but what happens next transforms it into something Ford never built—a street-legal rocket ship that can still haul your weekend toys.”
Week One: Disassembly and Preparation
Complete Teardown Process
The first stage involves systematically removing factory components to prepare for upgrades. Technicians begin by disconnecting the battery and draining all fluids—engine oil, coolant, and transmission fluid. The factory intake system comes off first, including the air filter housing, intake tube, and throttle body. This exposes the intake manifold that will be replaced by the supercharger assembly.
The stock exhaust system is removed from the headers back, making way for the custom Borla performance exhaust. Front suspension components are disassembled for the lowering kit installation. The wheels and tires are removed, and brake calipers are taken off to access the rotors that will be replaced with upgraded units.
Interior work begins with removing seats for reupholstering, pulling door panels for trim installation, and preparing the dash for custom gauge clusters and serialized plaques. The hood is removed for modification or replacement with the functional ram air unit. Every removed part is cataloged, with reusable components stored carefully and factory parts recycled or discarded.
Surface Preparation
The engine compartment receives thorough cleaning, with technicians using compressed air to blow off loose dirt and debris. For heavily soiled trucks, steam cleaning ensures a pristine workspace. This isn’t just cosmetic—dirt and debris can contaminate the new performance components or interfere with proper installation.
Fuel system pressure must be released before working on fuel lines. The fuel pump control module electrical connector is disconnected, the engine is allowed to idle until it stalls, then cranked for approximately 10 seconds to relieve residual pressure. This critical safety step prevents fuel spray during component changes.
Week Two: The Supercharger Installation
Whipple Gen 6 Twin-Screw Technology

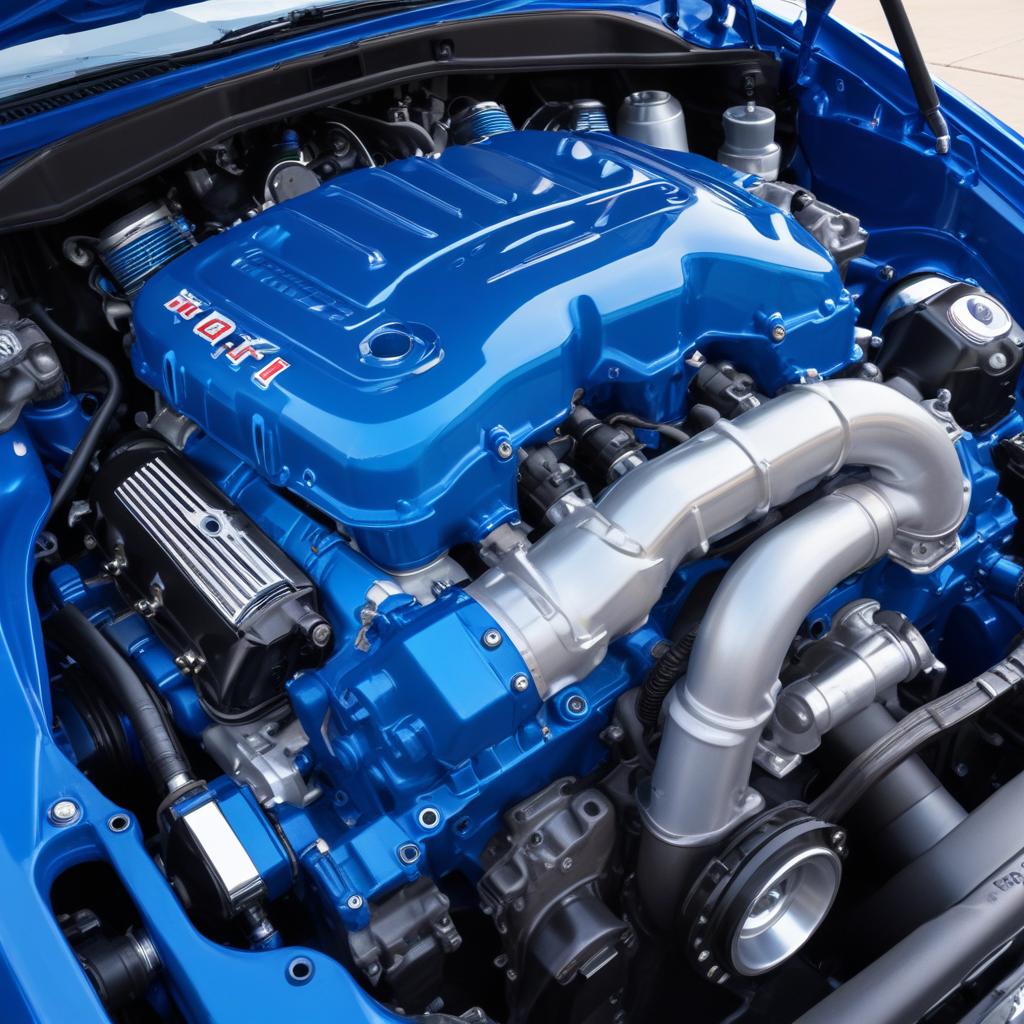

The heart of the Super Snake transformation is the Whipple Gen 6 3.0-liter twin-screw supercharger. This isn’t a simple bolt-on—it’s a complete forced induction system requiring extensive modifications. The Gen 6 uses an inverted design where the supercharger nestles between the cylinder heads in the engine valley, allowing for a lower overall height that fits under the stock hood.
The twin-screw design offers significant advantages over traditional roots-type superchargers. The 3×4 rotor combination provides more efficient airflow with less heat generation. As air enters the supercharger, it’s compressed by precisely-machined rotors that squeeze progressively more air into the engine. This positive displacement design delivers instant boost with no lag—throttle response is immediate.
The system features Whipple’s patented dual-pass, dual-core intercooler design. Unlike competitors’ single-pass systems, Whipple routes compressed air through each intercooler twice, dramatically improving cooling efficiency. The massive aluminum bar-plate intercoolers extract heat from compressed air, allowing denser air charges that produce more power safely.
Installation Steps and Components
The supercharger mounts to a specially-designed intake manifold that replaces the factory unit. Technicians assemble the intake manifold with components like the intercooler and fuel rails attached as instructed. The supercharger assembly, weighing approximately 149 pounds, is carefully positioned onto the intake using an engine hoist if necessary.
Pulleys and belts connect the supercharger to the engine’s drive system, spinning the rotors at precise ratios. The belt system is critical—too loose and it slips, too tight and it creates excessive wear. Shelby technicians use specific tension measurements to ensure proper operation.
The fuel system receives major upgrades to support the increased power. Stock 17 lb/hr injectors are replaced with massive 50 lb/hr dual-pattern injectors borrowed from the GT500 Mustang. These high-flow injectors deliver the additional fuel required when forcing 8-10 PSI of boost into the combustion chambers. An upgraded fuel pump ensures adequate pressure under all conditions.
Cooling System Enhancements
All that compressed air and extra power generates serious heat. Shelby installs an extensive cooling package including a larger aluminum radiator with increased core thickness. A high-flow intercooler pump—nearly double the capacity of standard units—circulates coolant through the air-to-water intercoolers. The pump runs continuously when the engine operates, ensuring consistent cooling.
An upgraded oil cooler keeps engine oil temperatures in check. The 10-speed automatic transmission gets its own upgraded cooler to handle increased torque loads. Heat exchangers for both the intercooler and oil systems are sized larger than stock. The functional hood vents aren’t just styling—they actively extract hot air from the engine compartment, creating negative pressure that pulls cool air through the radiator.
Engine Computer Programming
Modern engines rely heavily on computer control, and supercharging requires extensive reprogramming. Whipple’s proprietary software reconfigures all necessary engine functions including fuel delivery, spark timing, knock detection, torque management, transmission control, and electronic throttle control.
The programming adds a 3-bar MAP sensor to measure manifold pressure under boost conditions. Stock sensors can’t read the positive pressure created by the supercharger. An additional air temperature sensor monitors intake temperatures. The PCM constantly monitors engine torque output while monitoring many parameters to keep the engine within ideal specifications—if a parameter falls below spec, the PCM lowers boost and torque until the problem is resolved.
This sophisticated programming maintains drivability and reliability. The truck retains all factory drive modes—Eco, Normal, Sport, and Tow/Haul all function properly with adjusted parameters for the supercharged engine. The calibration ensures the 10-speed transmission shifts smoothly despite handling nearly double the factory torque output.
Suspension and Brake Modifications
FOX Performance Suspension Installation
While the supercharger installation progresses, other technicians work on transforming the truck’s handling characteristics. The factory coil springs and shocks are completely removed. At the front, Shelby installs FOX 2.5-inch adjustable coilover dampers with internal bypass technology. These aren’t simple shock absorbers—they’re sophisticated dampers allowing independent adjustment of compression and rebound.
New upper control arms correct suspension geometry for the lowered ride height. The stock arms work fine at factory height but create poor alignment angles when the truck sits lower. The Shelby units maintain proper camber and caster angles, preventing excessive tire wear and maintaining stability. The suspension typically drops the front end 2-3 inches compared to stock.
At the rear, FOX adjustable shocks replace factory units. Performance rear sway bars reduce body roll in corners. Traction bars bolt to the rear axle, controlling axle wrap during hard acceleration—without them, the rear axle would rotate under the truck, creating wheel hop and inconsistent launches.
Brembo Brake System
Upgraded stopping power is essential when you’ve nearly doubled the horsepower. The front receives massive six-piston Brembo calipers painted in distinctive colors—typically red or black. These grip large slotted and drilled rotors measuring significantly larger than stock. The increased rotor diameter and multiple pistons provide dramatically improved clamping force.
The rear gets upgraded slotted rotors and performance brake pads, though not the full Brembo treatment since the front brakes handle the majority of stopping duties. High-performance brake fluid with higher boiling points prevents fade during aggressive driving. Stainless steel braided brake lines replace rubber lines, providing better pedal feel and durability.
The brake system is bled thoroughly to remove all air, ensuring consistent pedal feel. Shelby technicians test the brakes extensively before the truck leaves the facility. Always obey local speed limits and drive responsibly—the Super Snake’s performance capabilities are meant for track use or controlled environments.
Week Three: Exterior, Interior, and Final Assembly
Body and Aerodynamic Modifications
The exterior transformation includes custom front and rear bumpers designed specifically for the Super Snake. The front bumper features an integrated splitter that reduces front lift at high speeds. Functional air intakes channel cooling air to the engine and brakes. The honeycomb mesh grilles aren’t just attractive—they allow maximum airflow.
The dual-intake ram air hood is one of the most dramatic changes. Those prominent nostrils feed cool air directly to the supercharger intake, while functional heat extractors vent hot air from the engine bay. The hood may be the stock unit modified, or a completely new lightweight composite piece depending on the package.
Body-color fender flares accommodate the wider track width and larger tires. Power running boards with LED lighting deploy when doors open. The hard-shell tonneau cover is painted to match and features Shelby lettering. Classic dual racing stripes are carefully applied by hand, running from bumper to bumper in the customer’s chosen color combination.
Interior Refinements
Seats are reupholstered in premium leather with Shelby embroidering and contrast stitching. Alcantara inserts on the seat bolsters provide extra grip. Carbon fiber trim pieces replace plastic on the dash, door panels, and center console. While some carbon may be overlay rather than structural carbon fiber, it still enhances the performance aesthetic.
The serialized dash plaque is mounted prominently, displaying the truck’s unique CSM number. This plaque connects the truck to the official Shelby registry and proves its authenticity. Custom floor mats with Shelby branding protect the carpeting. Illuminated door sill plates greet occupants when doors open.
Billet aluminum racing pedals replace the rubber stock units. The steering wheel receives leather or Alcantara wrapping with Shelby badging. Every interior detail receives attention to create a cohesive, upscale environment that matches the exterior’s aggressive stance.
Quality Control and Testing
Pre-Delivery Inspection
Before any Super Snake leaves the facility, it undergoes rigorous quality control. Technicians perform complete functional checks of all systems—engine, transmission, suspension, brakes, and electronics. The supercharger system is inspected for proper belt tension, intercooler pump operation, and absence of leaks.
A test drive on public roads verifies proper operation under real-world conditions. The truck must accelerate smoothly without hesitation, shift properly through all gears, handle predictably, and brake effectively. Any issues discovered during testing are immediately corrected.
The computer system is scanned for diagnostic trouble codes. Even if the check engine light isn’t illuminated, stored codes could indicate problems. The fuel trim, boost pressure, and air-fuel ratios are verified to ensure everything operates within specified parameters. Emissions testing confirms 50-state legality.
Documentation and Registry
Each completed Super Snake receives comprehensive documentation. The build sheet details every component installed, all modifications performed, and the truck’s specifications. The certificate of authenticity includes the CSM number, build date, and confirming signatures. Warranty paperwork outlines coverage for Shelby components.
The truck is officially entered into the Shelby American registry, a database tracking every Shelby vehicle ever built. Owners can access their truck’s information online using the CSM number. This registry inclusion is crucial for authenticity verification and helps maintain resale value.
Shelby F-150 Modification Components Breakdown
| System | Stock Component | Shelby Upgrade | Performance Gain |
|---|---|---|---|
| Engine | Naturally Aspirated V8 | Whipple Gen 6 Supercharger | +385 hp, +275 lb-ft |
| Intake | Stock Manifold | Dual Intercooler Assembly | Lower intake temps |
| Fuel System | 17 lb/hr Injectors | 50 lb/hr GT500 Injectors | 3x fuel capacity |
| Exhaust | Stock Cat-Back | Borla Performance | Better flow, sound |
| Front Suspension | Stock Coils/Shocks | FOX 2.5″ Coilovers | 2-3″ drop, adjustable |
| Rear Suspension | Stock Shocks | FOX Adjustable + Bars | Improved control |
| Front Brakes | Stock Calipers | Brembo 6-Piston | 40% more stopping power |
| Wheels | 18-20″ Stock | 22″ Shelby Forged | Lighter, wider |
| Computer | Stock Calibration | Custom Whipple Tune | Optimized for boost |
Shelby F-150 Build Process: 3-Week Transformation Timeline
Maintenance Requirements After Modification
Supercharger Maintenance
The Whipple supercharger requires periodic maintenance to ensure longevity. The supercharger oil should be changed every 50,000-100,000 miles depending on usage patterns. Aggressive driving or track use shortens the interval. Belt inspection should occur during regular service—check for cracks, glazing, or fraying.
The intercooler system uses coolant that should be changed according to Ford’s schedule. The intercooler pump operation should be verified periodically by listening for smooth operation and checking for leaks. The air filter requires more frequent replacement than stock due to the increased airflow demands.
Engine and Drivetrain Service
Shelby recommends using Ford Motorcraft 5W-50 full synthetic motor oil rather than the stock 5W-20. The thicker viscosity better protects the engine under increased stress from boost pressure. Oil changes should occur every 5,000 miles with the specified synthetic oil and Motorcraft oil filter.
Spark plugs require attention every 20,000-30,000 miles. The supercharged engine is harder on plugs than naturally aspirated versions. Proper gap settings are critical—too wide and misfires occur under boost, too narrow and combustion efficiency suffers. Shelby provides specific gap specifications for their calibration.
The 10-speed transmission fluid should be changed every 50,000 miles, more frequently if towing or racing regularly. The performance brake pads wear faster than stock, especially with aggressive driving. Expect replacement every 20,000-30,000 miles. The high-performance tires also wear more quickly than standard all-season rubber.
Frequently Asked Questions
How long does the complete Shelby modification process take?
The typical Super Snake conversion requires approximately three weeks from when the donor truck arrives at Shelby’s Las Vegas facility until the completed vehicle ships to the dealer. Complex custom orders may take longer depending on parts availability and customization requests.
Can I watch my truck being built at the Shelby facility?
While Shelby offers free factory tours six days a week where you can watch trucks being built, you typically can’t watch your specific truck throughout the entire process. However, many dealers provide updates and photos during the build, and some customers do visit during their truck’s conversion.
Does Shelby modify trucks at any location other than Las Vegas?
The main Super Snake conversions happen at Shelby American’s Las Vegas headquarters. However, Shelby has authorized international modification shops in countries like Australia, South Africa, and parts of Europe that can perform certain conversions using Shelby-supplied kits and parts.
What happens to the stock parts that are removed?
Most removed factory parts are not included with the completed truck. Some components like wheels may be available for purchase separately. The dealer handling your order can sometimes arrange for you to receive certain removed parts, but this varies by dealer and must be arranged in advance.
Can any Ford dealership order a Shelby Super Snake for me?
No, only authorized Shelby dealers can order and sell Super Snake trucks. These dealers have specific relationships with Shelby American and receive allocations of builds. You can find authorized dealers through Shelby American’s website dealer locator tool.
Is the Shelby warranty transferable if I sell the truck?
Yes, the Shelby 3-year/36,000-mile limited warranty covering their installed components is transferable to subsequent owners. This transferability helps maintain resale value. The base F-150 components remain covered under Ford’s factory warranty which also transfers.
How much does the Shelby conversion add to the truck’s value?
The Shelby conversion typically adds $35,000-$65,000 to the base truck’s value depending on the package and options. However, the total cost including the donor vehicle ranges from $110,000-$140,000. The limited production helps these trucks retain value better than standard F-150s.
The Shelby Difference: Craftsmanship Meets Performance
What separates a Shelby modification from aftermarket bolt-on parts you could install yourself? It’s the integration, testing, and warranty coverage. Every component works together as an engineered system rather than individual parts thrown together. The custom ECU programming alone requires proprietary software and expertise that DIY enthusiasts can’t replicate.
The hand-built nature ensures quality control exceeds typical production standards. Shelby technicians treat each truck individually, performing careful assembly and thorough testing. The serialized numbering and registry inclusion create authentic collector’s pieces rather than just modified trucks.
The three-year warranty provides peace of mind that backyard supercharger installations can’t match. Shelby stands behind their work, and authorized dealers can service your truck nationwide. This professional approach justifies the premium pricing and creates vehicles that hold their value.
The Las Vegas facility brings everything together under one roof—engineering, assembly, quality control, and heritage. Walking through those doors, you’re witnessing American automotive craftsmanship at its finest. Stock trucks enter, legends emerge.
What impresses you most about the Shelby modification process—the supercharger installation, the attention to detail, or the hand-built quality? Share your thoughts below!
